Problem (Solution at the end of the article)

<!-- file inner.xml -->

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/innerLayout"
    android:layout_width="match_parent"
    android:layout_height="530dp"
    android:fitsSystemWindows="true"
    android:orientation="vertical">
	...
</RelativeLayout>

<!-- file outer.xml -->

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/outerLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:overScrollMode="never"
    android:scrollbars="none"
    android:visibility="invisible"
    android:fitsSystemWindows="true">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        android:fitsSystemWindows="true">

        <include layout="@layout/inner" />
    </LinearLayout>

</ScrollView>

// file activity.kt

class Activity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        ...
        nowLayout.setBackgroundResource(ImageId)
        ...
    }
}

<!-- file AndroidManifest.xml -->

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="xyz.aiinirii.xxx">

    <application
        android:name=".xxxApplication"
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
		...
        <activity android:name=".Activity" android:theme="@style/ActivityTheme"/>
		...
    </application>

</manifest>

<!-- file styles.xml -->

<resources>

	<style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>
    </style>

    <style name="ActivityTheme" parent="AppTheme">
        <item name="android:statusBarColor">@android:color/transparent</item>
    </style>

</resources>

Above are several related files. Theoretically, with the settings above, the status bar should be transparent, but in practice, this is what happens:

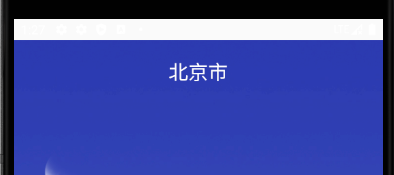

image-20200813212736743

As you can see, the status bar above is white. I’m not sure where the problem is yet. Next, I plan to do some experiments.

Experiments

  1. Changed background to static XML setting, i.e., adding android:background="@color/colorPrimary", found it didn’t help.
  2. Speculated that it was because the view that needs the transparent box attribute has android:layout_height="530dp" fixed. Changed to match_parent but still no use.
  3. Speculated that it was caused by the <include> tag, so I added an image above the <include> tag and set android:fitsSystemWindows="true", found the problem still exists.
  4. Speculated that <ScrollView> tag doesn’t support transparent mode, but actually it’s not…

The Problem

Finally found where the problem is. After checking all theinformation (information), here’s the summary:

  1. First, about the android:fitsSystemWindows attribute. I misunderstood it before. For a component, if this value is set to true, it will avoid the system component. The specific avoidance method is adding padding. Below, experiments are conducted by changing the fitsSystemWindows field of the Beijing TextView component.

    • fitsSystemWindows = false:

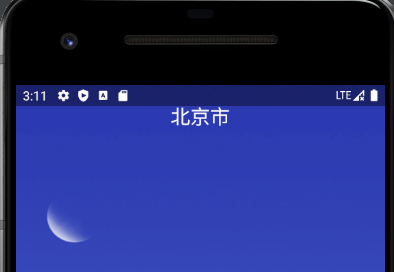

      image-20200813231215979

    • fitsSystemWindows = true

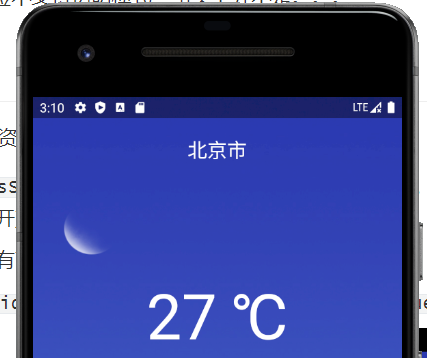

      image-20200813231024882

  2. If you want to solve the above problem, there are two methods:

    • <item name="android:windowTranslucentNavigation">true</item> This is my favorite method. Its effect picture is as follows:

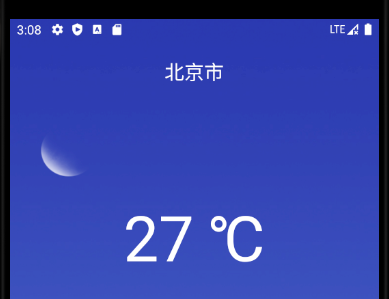

      image-20200813230852013

    • <item name="android:windowTranslucentStatus">true</item> This corresponds to the semi-transparent effect:

      image-20200813231024882
